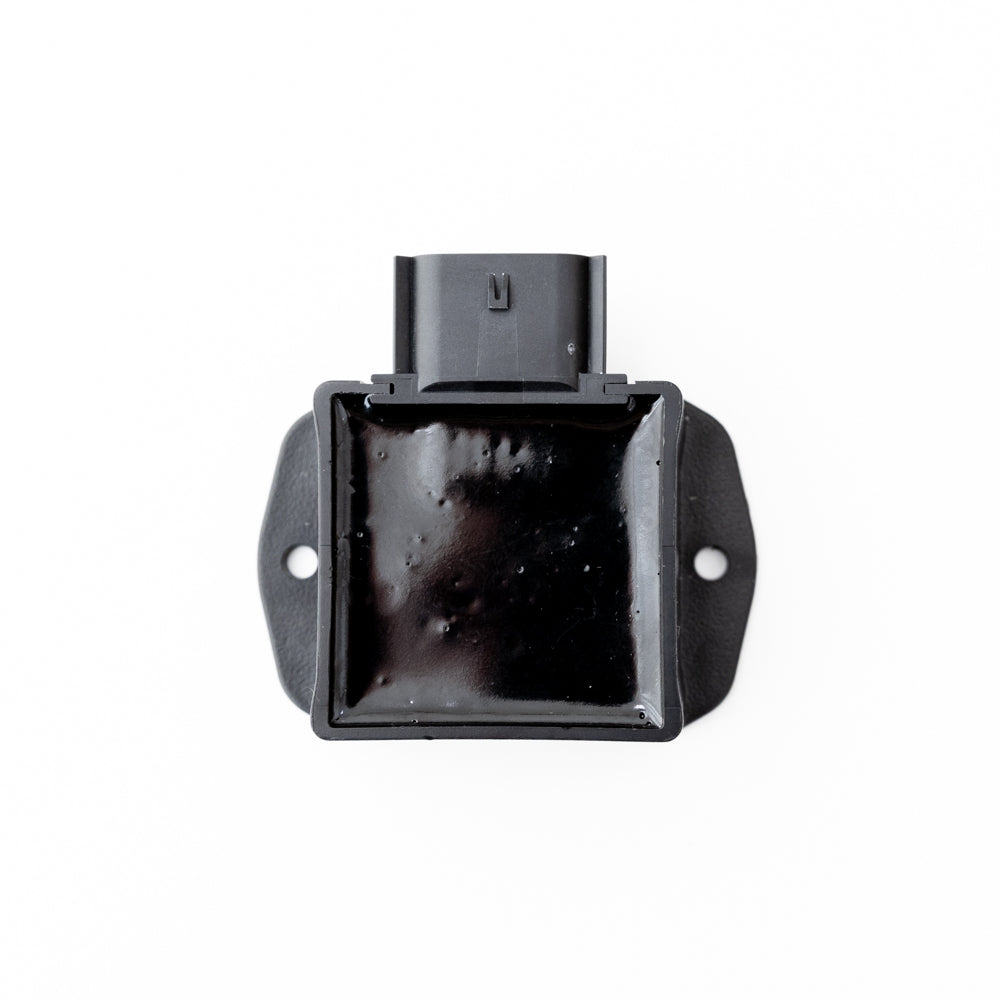

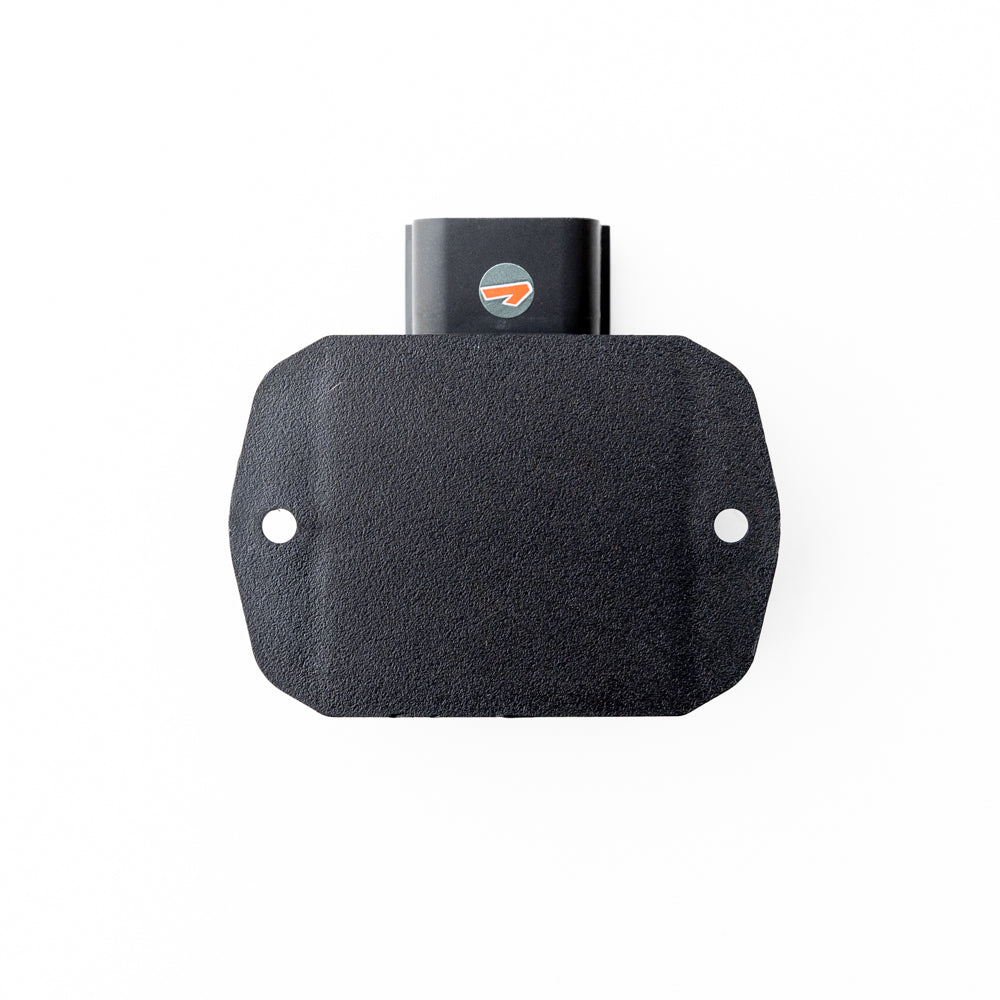

PWM to Stepper Motor Controller

£180.00 GBP
£180.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The PWM to Stepper Motor Controller allows the use of a single PWM signal to control a 4 wire stepper motor.
The stepper is designed to move 2 steps for every 1% of PWM duty.

View full details

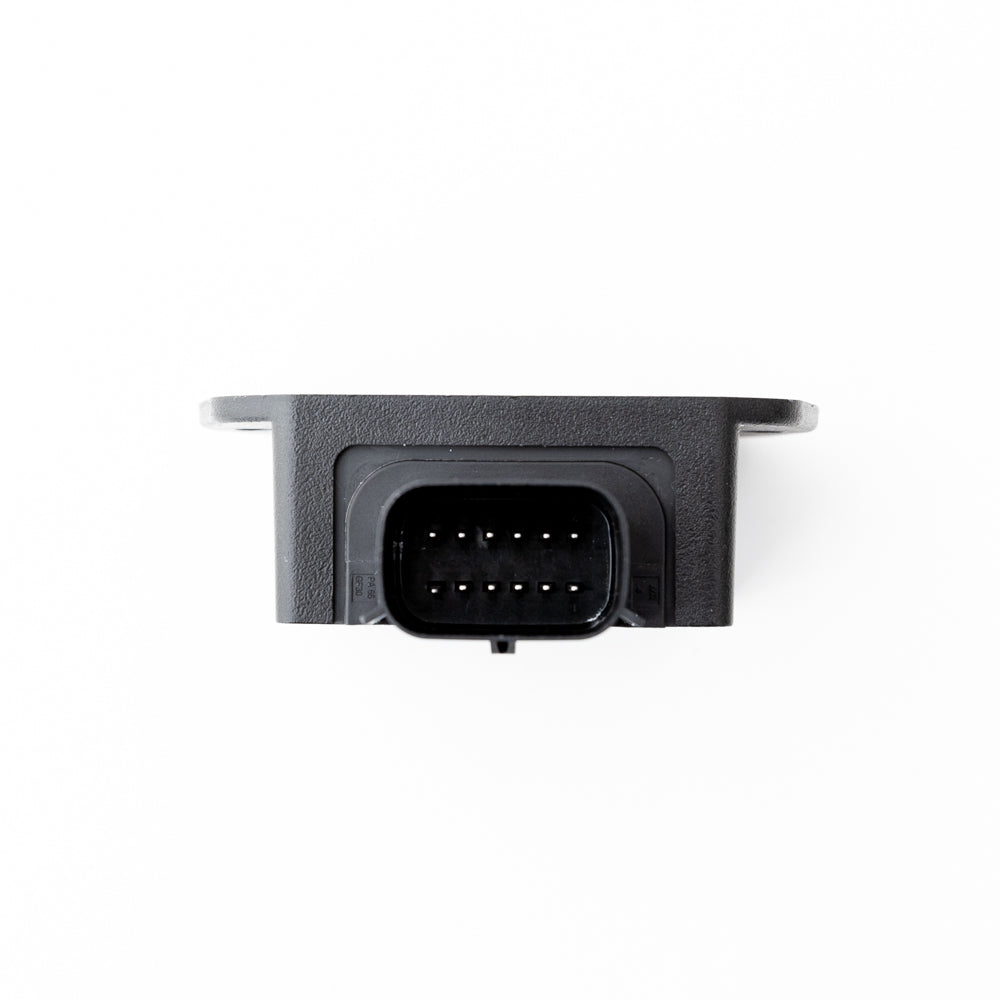

Pin 1 - Coil 1 Positive
Pin 2 - Coil 1 Negative
Pin 3 - Coil 2 Positive
Pin 4 - Coil 2 Negative
Pin 5 - PWM Input from ECU
Pin 6 - NC
Pin 7 - 12V From engine control relay
Pin 8 - NC
Pin 9 - NC
Pin 10 - NC
Pin 11 - NC
Pin 12 - Power Ground
