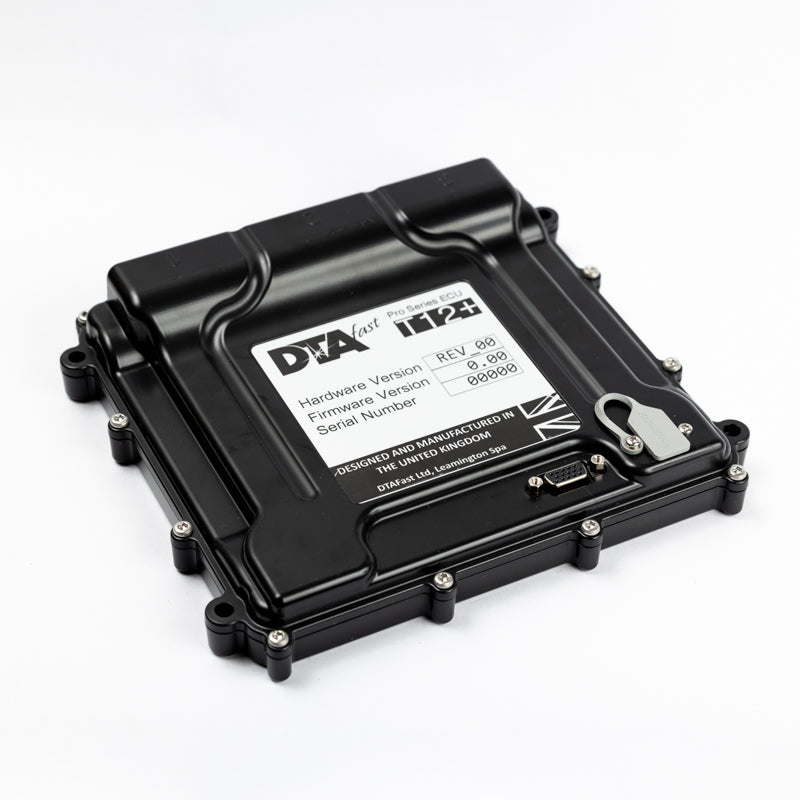

T12+ ECU

The T12+ is the flagship ECU in the DTA range. Packed with advanced features, it is designed to control complex engines of up to 12 cylinders with full sequential injection and ignition. Dual drive-by-wire control, dual knock sensing, quad variable camshaft control, paddle shift support and much more make it one of the most capable ECUs available.

T-Series engine control units are powered by an all-new automotive-grade multi-core processor, delivering the performance required for advanced engine management strategies. Integrated Bosch lambda controllers provide exceptional measurement accuracy, while multiple safety redundancies help ensure reliable operation in demanding environments.

T-Series ECUs feature high-resolution mapping tables, fully configurable I/O, and up to 32 MB of onboard data logging at rates of up to 500 Hz. Advanced compression algorithms enable rapid log downloads for efficient analysis.

The T-Series PC software features a modern, responsive user interface optimised for high-resolution displays and high-DPI scaling. A built-in oscilloscope provides detailed crankshaft and camshaft signal analysis, while firmware updates can be performed directly through the software without the need for special cables or additional utilities.
